Free Label Designer for Thermal Printer
UI

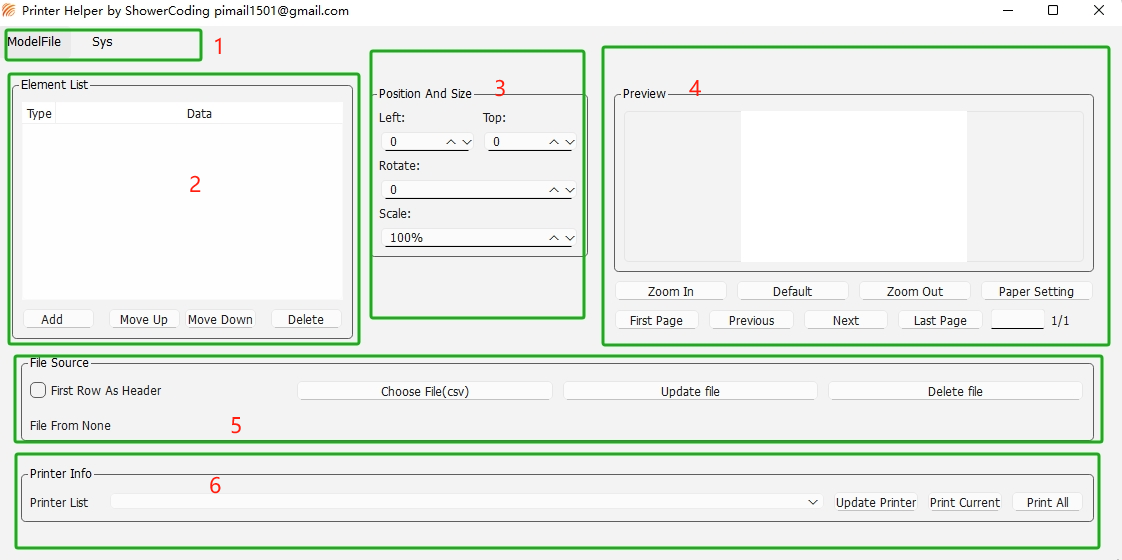

It is mainly divided into 6 parts, menu bar, element list area, element attribute editing area, preview area, batch file area, and printer area.
Firstly Choose Printer and Set Paper Size
Select the printer to which you want to print from the printer list.

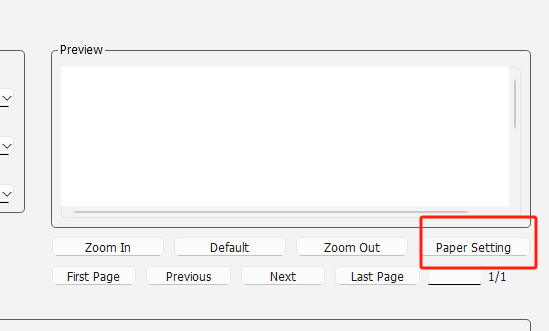

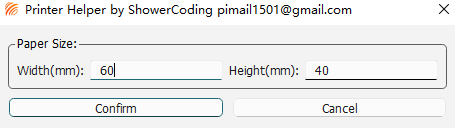

Set the size of the printing paper in millimeters
Create Label Model

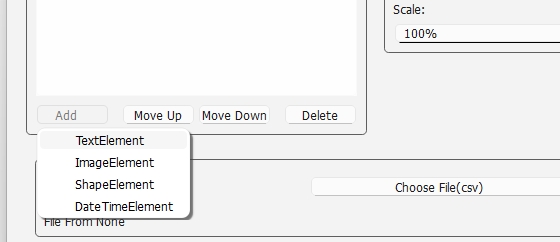

Add elements (Text/Shape/Image/TimeStamp)

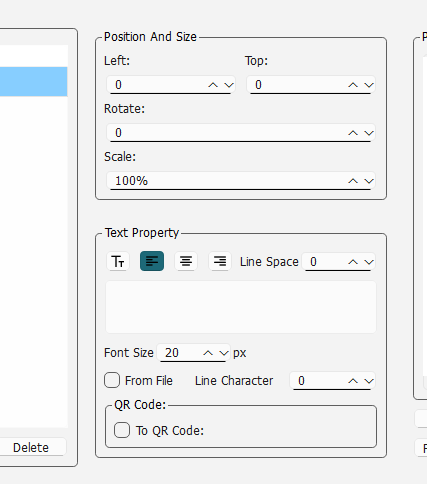

modify properties of element
We can ajust position/rotate/scale of all elements
TextElement: FontFamily/Line Space/From File and so on
Some Element Example
I created a Bread Label Model.Element 1/2/4/6/7/8 were fixed text.We can just type the text.

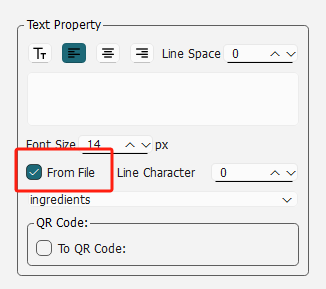

Element 3/5/9 are from file which we can choose file(csv).

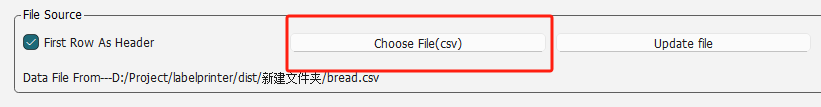

Choose File(csv)
Connect File Column to Element
After choosing file we can connect file data to elements.We can choose the column we wanna.
Label Model Management
Open /New /Save Model
In menubar we can manage model with openning / newing / saving.
Printing

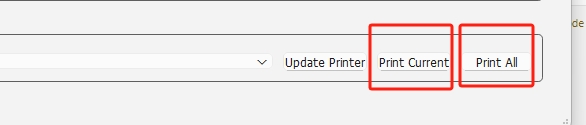

Print Options
One is for printing page currently previewed.The other one is printing all pages which are in relation with csv file we choosed.

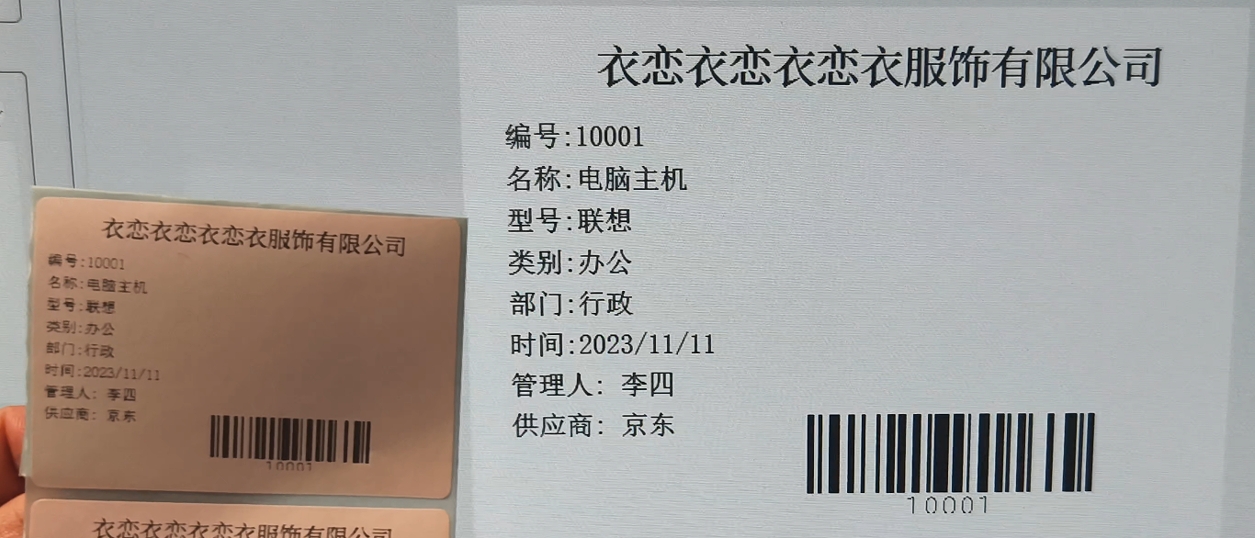

Printed Paper
